Conditions for displaying a state transition diagram:

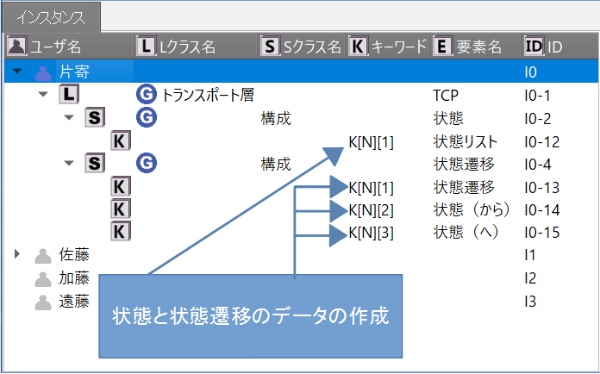

    Data must be created with state and transition keywords in the instance.　　

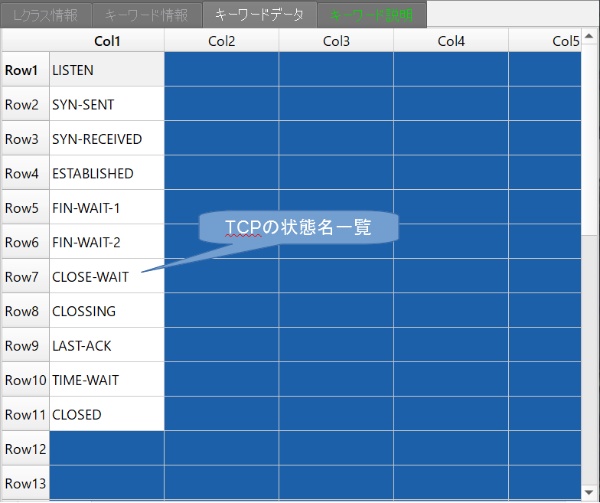

      The state keywords are shown below.

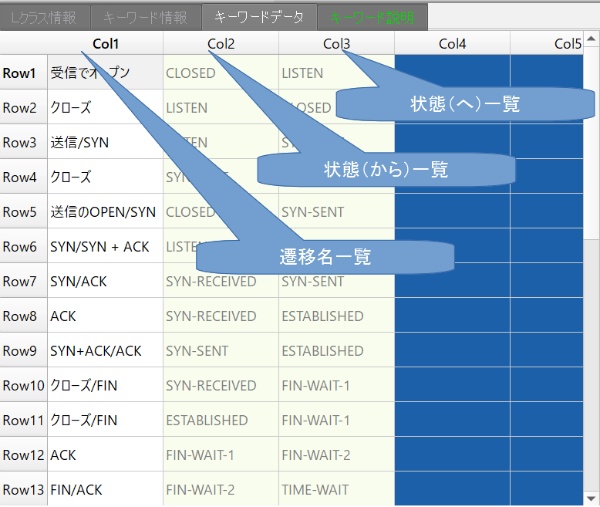

      The state transition keywords are shown below.


      To navigate to the state transitions, click the State Transitions tab.

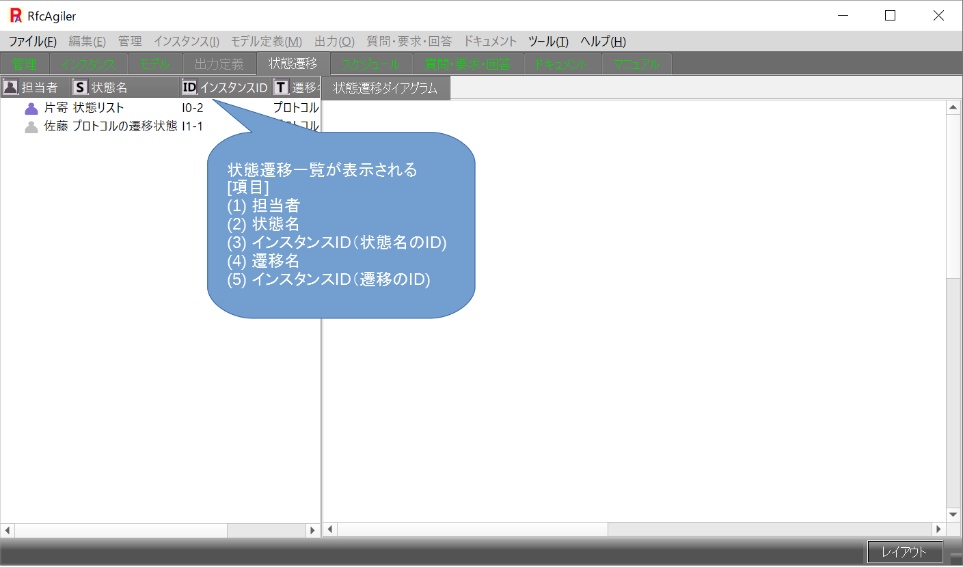

      The state transition screen will be displayed.


      A list of state transitions is displayed.

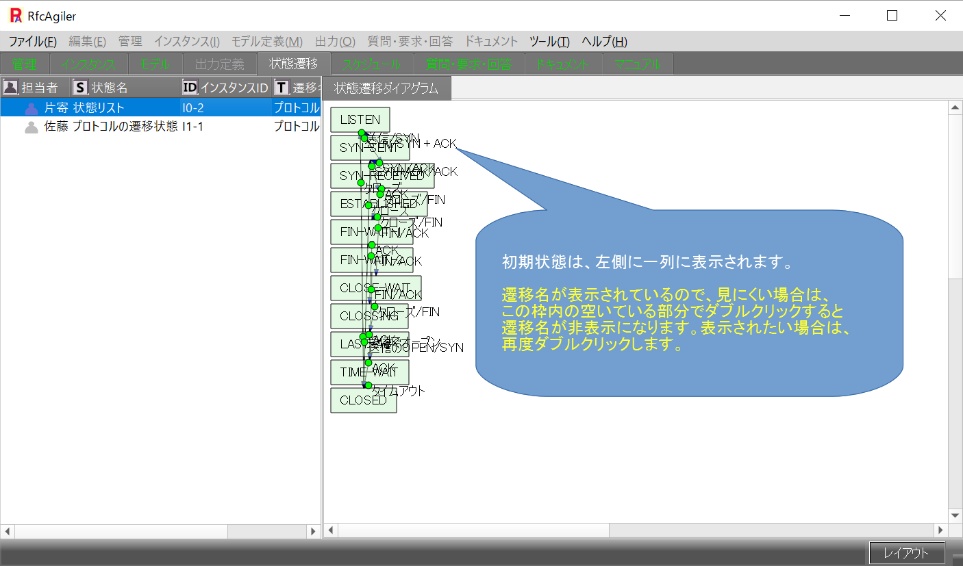

     Click the state transition you want to view to display the state transition diagram.

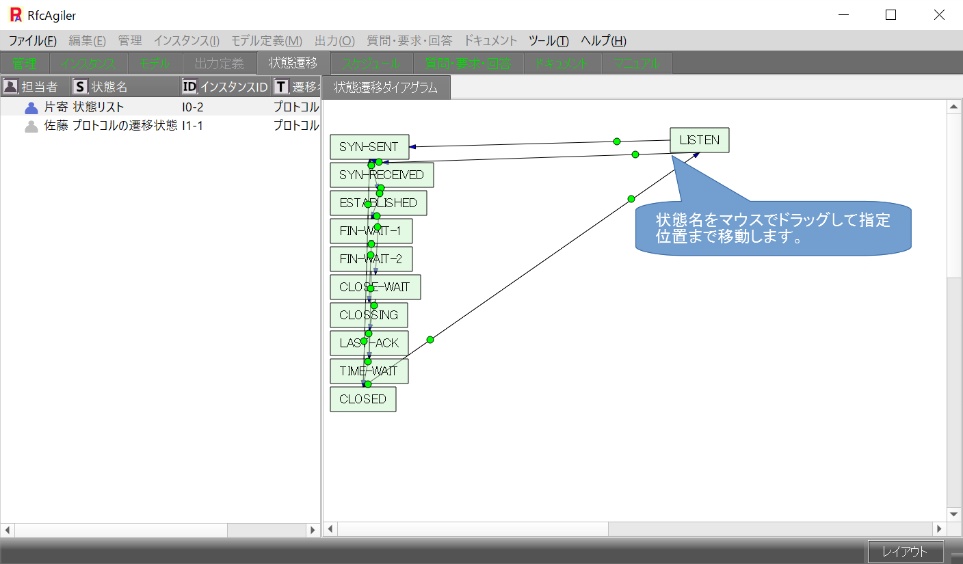

      To move between states, click and hold on a state to move it.
     For better visibility, double-click to hide the transition name.

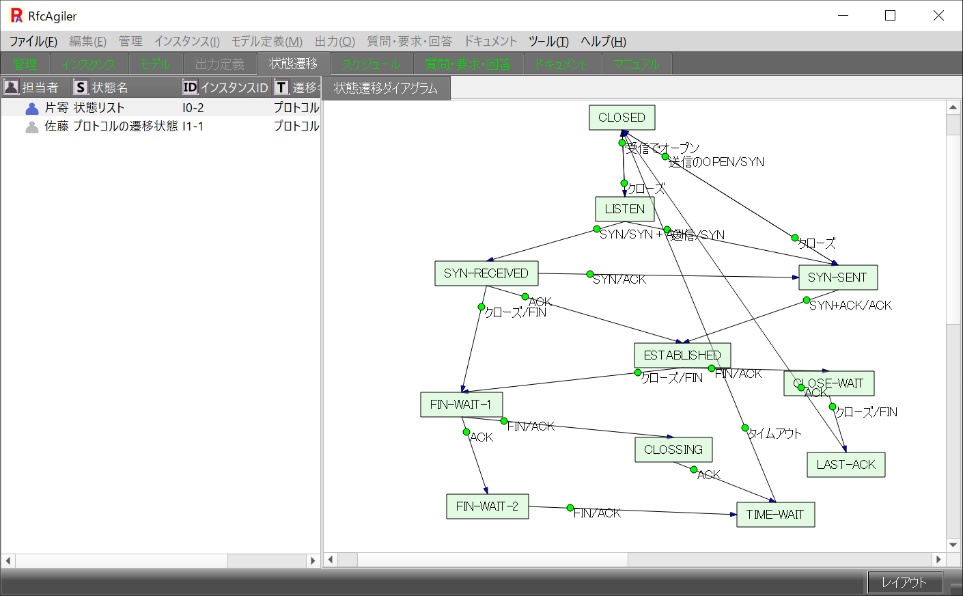

      Here's what everything looks like after it's been moved:


      The green circles representing the transitions between states are shown below

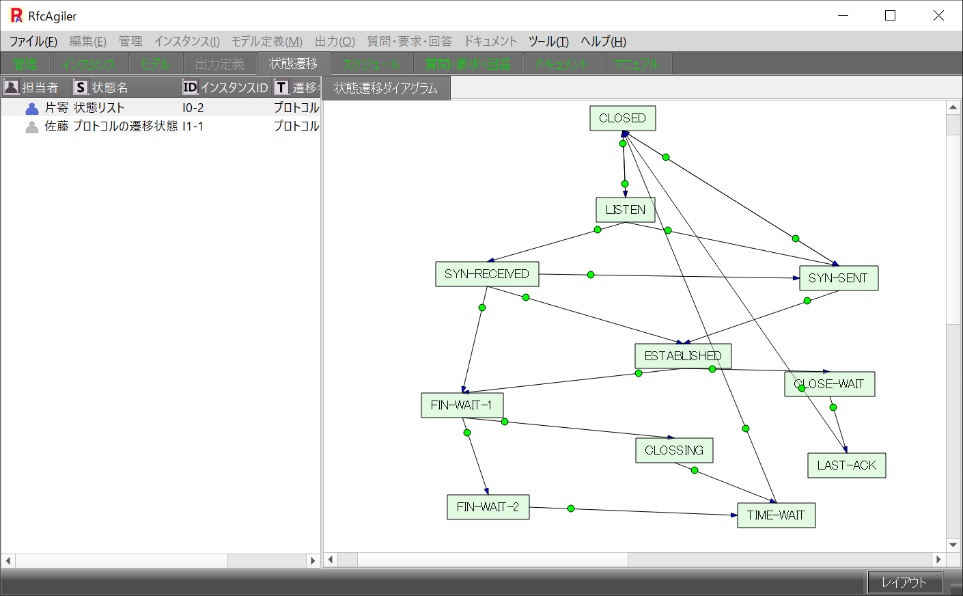

      The figure below shows what happens when you double-click inside the state transition diagram to hide the transition names
